Blue Carbon · Smart Power Station

Smart Power Station 220V / 6 kW / 15 kWh

All-in-one 220V home energy storage system with inverter and 51.2 V / 300 Ah LiFePO4 battery in one unit.

Inverter power

6 kW

Battery energy

15 kWh

Battery

51.2 V / 300 Ah

Output

208/220/230/240 VAC

Model: Smart Power Station 220V/6kW (15kWh)

Request a Quote Download Datasheet (PDF)

Product Overview

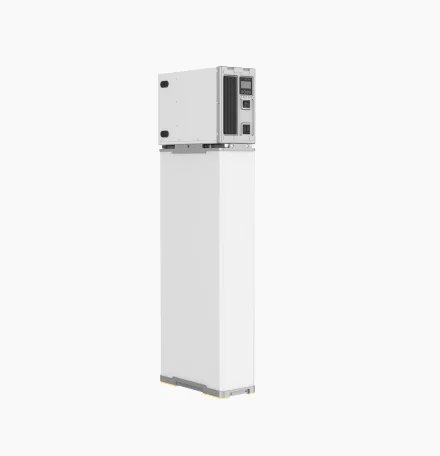

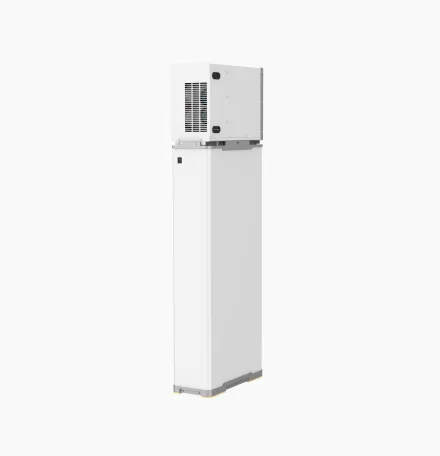

The Smart Power Station 220V/6kW (15kWh) is an all-in-one home energy storage system that integrates an inverter and a LiFePO4 battery in one unit. It accepts solar (PV), diesel generator and 220V AC grid input and is intended for essential household power.

Battery nominal capacity is 51.2 V / 300 Ah (15 kWh). The inverter provides up to 6 kW. The manufacturer states that up to 9 units can be paralleled for 220V / 54 kW, and the system supports peak/off-peak tariff optimization.

The shared Blue Carbon datasheet also covers other models, including a 380V three-phase range, so use the figures on this page for the 6 kW / 15 kWh unit.

Technical Specifications

Specifications are taken from the manufacturer's product page and datasheet. Fields that the manufacturer does not publish are stated as such rather than estimated.

Battery nominal capacity

300 Ah

Battery nominal voltage

51.2 V

Battery energy

15 kWh

Battery chemistry

LiFePO4

Cycle life

6000 cycles (manufacturer)

Warranty (battery)

10 years (stated by the manufacturer on its product page)

Inverter max power

6 kW

AC output voltage

208 / 220 / 230 / 240 VAC

Frequency

50/60 Hz ±0.1%

Switch time

10 ms (normal mode) / 10 ms (UPS mode)

Max parallel

9 groups (54 kW per the product feature text; the spec cell reads 54 kWh)

AC input

208/220/230/240 VAC; L+N+PE

Solar charger

MPPT

Max PV input

18 A / 6000 W

MPPT range

120–450 VDC

Dimensions, weight, operating temperature, certifications

Not specified in the available manufacturer documentation.

Product Features

All-in-one design

Inverter and battery integrated in one unit; can be disassembled independently.

Scalable capacity

Up to 9 units in parallel for 220V / 54 kW.

Multiple energy inputs

PV, diesel generator and 220V AC grid input.

Time-of-use optimization

Charge off-peak and discharge at peak demand.

LiFePO4 battery

6000 cycles; 10-year warranty stated by the manufacturer.

Daytime solar charging

Stores solar energy for night-time use.

Applications

Essential household power, home appliances, small office use and emergency lighting.
Off-grid areas using daytime solar charging and night-time supply.
Peak/off-peak tariff optimization where time-of-use pricing applies.

Compatibility with a specific installation depends on its electrical configuration and the manufacturer's documentation. Confirm with a qualified electrician before purchase.
